Dask¶
This page explains how to distribute execution of the nodes composing your Kedro pipeline using Dask, a flexible, open-source library for parallel computing in Python.
Dask offers both a default, single-machine scheduler and a more sophisticated, distributed scheduler. The newer dask.distributed scheduler is often preferable, even on single workstations, and is the focus of our deployment guide. For more information on the various ways to set up Dask on varied hardware, see the official Dask how-to guide.
Why would you use Dask?¶
Dask.distributed is a lightweight library for distributed computing in Python. It complements the existing PyData analysis stack, which forms the basis of many Kedro pipelines. It's also pure Python, which eases installation and simplifies debugging. For further motivation on why people choose to adopt Dask, and, more specifically, dask.distributed, see Why Dask? and the dask.distributed documentation, respectively.
Prerequisites¶
The only additional requirement, beyond what was already required by your Kedro pipeline, is to install dask.distributed. To review the full installation instructions, including how to set up Python virtual environments, see our Get Started guide.
How to distribute your Kedro pipeline using Dask¶
Create a custom runner¶
Create a new Python package runner in your src folder, i.e. kedro_tutorial/src/kedro_tutorial/runner/. Make sure there is an __init__.py file at this location, and add another file named dask_runner.py, which will contain the implementation of your custom runner, DaskRunner. The DaskRunner will submit and monitor tasks asynchronously, surfacing any errors that occur during execution.
Make sure the __init__.py file in the runner folder includes the following import and declaration:
from .dask_runner import DaskRunner
__all__ = ["DaskRunner"]
Copy the contents of the script below into dask_runner.py:
"""``DaskRunner`` is an ``AbstractRunner`` implementation. It can be
used to distribute execution of ``Node``s in the ``Pipeline`` across
a Dask cluster, taking into account the inter-``Node`` dependencies.
"""
from collections import Counter
from itertools import chain
from typing import Any
from distributed import Client, as_completed, worker_client
from kedro.framework.hooks.manager import (
_create_hook_manager,
_register_hooks,
_register_hooks_entry_points,
)
from kedro.framework.project import settings
from kedro.io import AbstractDataset, CatalogProtocol
from kedro.pipeline import Pipeline
from kedro.pipeline.node import Node
from kedro.runner import AbstractRunner, SequentialRunner
from pluggy import PluginManager
class _DaskDataset(AbstractDataset):
"""``_DaskDataset`` publishes/gets named datasets to/from the Dask
scheduler."""
def __init__(self, name: str):
self._name = name
def _load(self) -> Any:
try:
with worker_client() as client:
return client.get_dataset(self._name)
except ValueError:
# Upon successfully executing the pipeline, the runner loads
# free outputs on the scheduler (as opposed to on a worker).
Client.current().get_dataset(self._name)
def _save(self, data: Any) -> None:
with worker_client() as client:
client.publish_dataset(data, name=self._name, override=True)
def _exists(self) -> bool:
return self._name in Client.current().list_datasets()
def _release(self) -> None:
Client.current().unpublish_dataset(self._name)
def _describe(self) -> dict[str, Any]:
return dict(name=self._name)
class DaskRunner(AbstractRunner):
"""``DaskRunner`` is an ``AbstractRunner`` implementation. It can be
used to distribute execution of ``Node``s in the ``Pipeline`` across
a Dask cluster, taking into account the inter-``Node`` dependencies.
"""
def __init__(self, client_args: dict[str, Any] = {}, is_async: bool = False):
"""Instantiates the runner by creating a ``distributed.Client``.
Args:
client_args: Arguments to pass to the ``distributed.Client``
constructor.
is_async: If True, the node inputs and outputs are loaded and saved
asynchronously with threads. Defaults to False.
"""
super().__init__(is_async=is_async)
Client(**client_args)
def __del__(self):
Client.current().close()
def create_default_dataset(self, ds_name: str) -> _DaskDataset:
"""Factory method for creating the default dataset for the runner.
Args:
ds_name: Name of the missing dataset.
Returns:
An instance of ``_DaskDataset`` to be used for all
unregistered datasets.
"""
return _DaskDataset(ds_name)
@staticmethod
def _run_node(
node: Node,
catalog: CatalogProtocol,
is_async: bool = False,
run_id: str | None = None,
*dependencies: Node,
) -> Node:
"""Run a single `Node` with inputs from and outputs to the `catalog`.
Wraps ``SequentialRunner.run()`` to accept the set of ``Node``s that this node
depends on. When ``dependencies`` are futures, Dask ensures that
the upstream node futures are completed before running ``node``.
A ``PluginManager`` instance is created on each worker because the
``PluginManager`` can't be serialised.
Args:
node: The ``Node`` to run.
catalog: An implemented instance of ``CatalogProtocol`` from which to fetch data.
is_async: If True, the node inputs and outputs are loaded and saved
asynchronously with threads. Defaults to False.
run_id: The run id of the pipeline run.
dependencies: The upstream ``Node``s to allow Dask to handle
dependency tracking. Their values are not actually used.
Returns:
The node argument.
"""
hook_manager = _create_hook_manager()
_register_hooks(hook_manager, settings.HOOKS)
_register_hooks_entry_points(hook_manager, settings.DISABLE_HOOKS_FOR_PLUGINS)
runner = SequentialRunner()
return runner.run(Pipeline([node]), catalog, hook_manager, is_async, run_id)
def _run(
self,
pipeline: Pipeline,
catalog: CatalogProtocol,
hook_manager: PluginManager | None = None,
run_id: str | None = None,
) -> None:
"""Implementation of the abstract interface for running the pipelines.
Args:
pipeline: The ``Pipeline`` to run.
catalog: An implemented instance of ``CatalogProtocol`` from which to fetch data.
hook_manager: The ``PluginManager`` to activate hooks.
run_id: The id of the run.
"""
nodes = pipeline.nodes
load_counts = Counter(chain.from_iterable(n.inputs for n in nodes))
node_dependencies = pipeline.node_dependencies
node_futures = {}
client = Client.current()
for node in nodes:
dependencies = (
node_futures[dependency] for dependency in node_dependencies[node]
)
node_futures[node] = client.submit(
DaskRunner._run_node,
node,
catalog,
self._is_async,
run_id,
*dependencies,
)
for i, (_, node) in enumerate(
as_completed(node_futures.values(), with_results=True)
):
self._logger.info("Completed node: %s", node.name)
self._logger.info("Completed %d out of %d tasks", i + 1, len(nodes))
# Decrement load counts, and release any datasets we
# have finished with. This is particularly important
# for the shared, default datasets we created above.
for dataset in node.inputs:
load_counts[dataset] -= 1
if load_counts[dataset] < 1 and dataset not in pipeline.inputs():
catalog.release(dataset)
for dataset in node.outputs:
if load_counts[dataset] < 1 and dataset not in pipeline.outputs():
catalog.release(dataset)
def run_only_missing(
self, pipeline: Pipeline, catalog: CatalogProtocol, hook_manager: PluginManager
) -> dict[str, Any]:
"""Run only the missing outputs from the ``Pipeline`` using the
datasets provided by ``catalog``, and save results back to the
same objects.
Args:
pipeline: The ``Pipeline`` to run.
catalog: An implemented instance of ``CatalogProtocol`` from which to fetch data.
hook_manager: The ``PluginManager`` to activate hooks.
Raises:
ValueError: Raised when ``Pipeline`` inputs cannot be
satisfied.
Returns:
Any node outputs that cannot be processed by the
catalog. These are returned in a dictionary, where
the keys are defined by the node outputs.
"""
free_outputs = pipeline.outputs() - set(catalog.list())
missing = {ds for ds in catalog.list() if not catalog.exists(ds)}
to_build = free_outputs | missing
to_rerun = pipeline.only_nodes_with_outputs(*to_build) + pipeline.from_inputs(
*to_build
)
# We also need any missing datasets that are required to run the
# `to_rerun` pipeline, including any chains of missing datasets.
unregistered_ds = pipeline.datasets() - set(catalog.list())
# Some of the unregistered datasets could have been published to
# the scheduler in a previous run, so we need not recreate them.
missing_unregistered_ds = {
ds_name
for ds_name in unregistered_ds
if not self.create_default_dataset(ds_name).exists()
}
output_to_unregistered = pipeline.only_nodes_with_outputs(
*missing_unregistered_ds
)
input_from_unregistered = to_rerun.inputs() & missing_unregistered_ds
to_rerun += output_to_unregistered.to_outputs(*input_from_unregistered)
# We need to add any previously-published, unregistered datasets
# to the catalog passed to the `run` method, so that it does not
# think that the `to_rerun` pipeline's inputs are not satisfied.
catalog = catalog.shallow_copy()
for ds_name in unregistered_ds - missing_unregistered_ds:
catalog.add(ds_name, self.create_default_dataset(ds_name))
return self.run(to_rerun, catalog)
def _get_executor(self, max_workers):
# Run sequentially
return None
Update CLI implementation¶
You're nearly there! Before you can use the new runner, you need to add a cli.py file at the same level as settings.py, using the template we provide. Update the run() function in the newly-created cli.py file to make sure the runner class is instantiated correctly:
def run(tag, env, ...):
"""Run the pipeline."""
runner = runner or "SequentialRunner"
tags = tuple(tags)
node_names = tuple(node_names)
with KedroSession.create(env=env, runtime_params=params) as session:
context = session.load_context()
runner_instance = _instantiate_runner(runner, is_async, context)
session.run(
tags=tags,
runner=runner_instance,
node_names=node_names,
from_nodes=from_nodes,
to_nodes=to_nodes,
from_inputs=from_inputs,
to_outputs=to_outputs,
load_versions=load_versions,
pipeline_name=pipeline,
)
where the helper function _instantiate_runner() looks like this:
def _instantiate_runner(runner, is_async, project_context):
runner_class = load_obj(runner, "kedro.runner")
runner_kwargs = dict(is_async=is_async)
if runner.endswith("DaskRunner"):
client_args = project_context.params.get("dask_client") or {}
runner_kwargs.update(client_args=client_args)
return runner_class(**runner_kwargs)
Deploy¶
You're now ready to trigger the run. Without any further configuration, the underlying Dask Client creates a LocalCluster in the background and connects to that:
kedro run --runner=kedro_tutorial.runner.DaskRunner
Set up Dask and related configuration¶
To connect to an existing Dask cluster, you'll need to set the Dask-related configuration that the runner will use. Create the conf/dask/ directory and add a parameters.yml file inside of it with the following keys:
dask_client:
address: 127.0.0.1:8786
Next, set up scheduler and worker processes on your local computer:
$ dask scheduler --host 127.0.0.1 --port 8786
Scheduler started at 127.0.0.1:8786
$ PYTHONPATH=$PWD/src dask worker 127.0.0.1:8786
$ PYTHONPATH=$PWD/src dask worker 127.0.0.1:8786
$ PYTHONPATH=$PWD/src dask worker 127.0.0.1:8786
Note
The above code snippet assumes each worker is started from the root directory of the Kedro project in a Python environment where all required dependencies are installed.
If you're using pip, you might need to install your Kedro project with:
pip install -e .
You're once again ready to trigger the run. Execute the following command:
kedro run --runner=kedro_tutorial.runner.DaskRunner

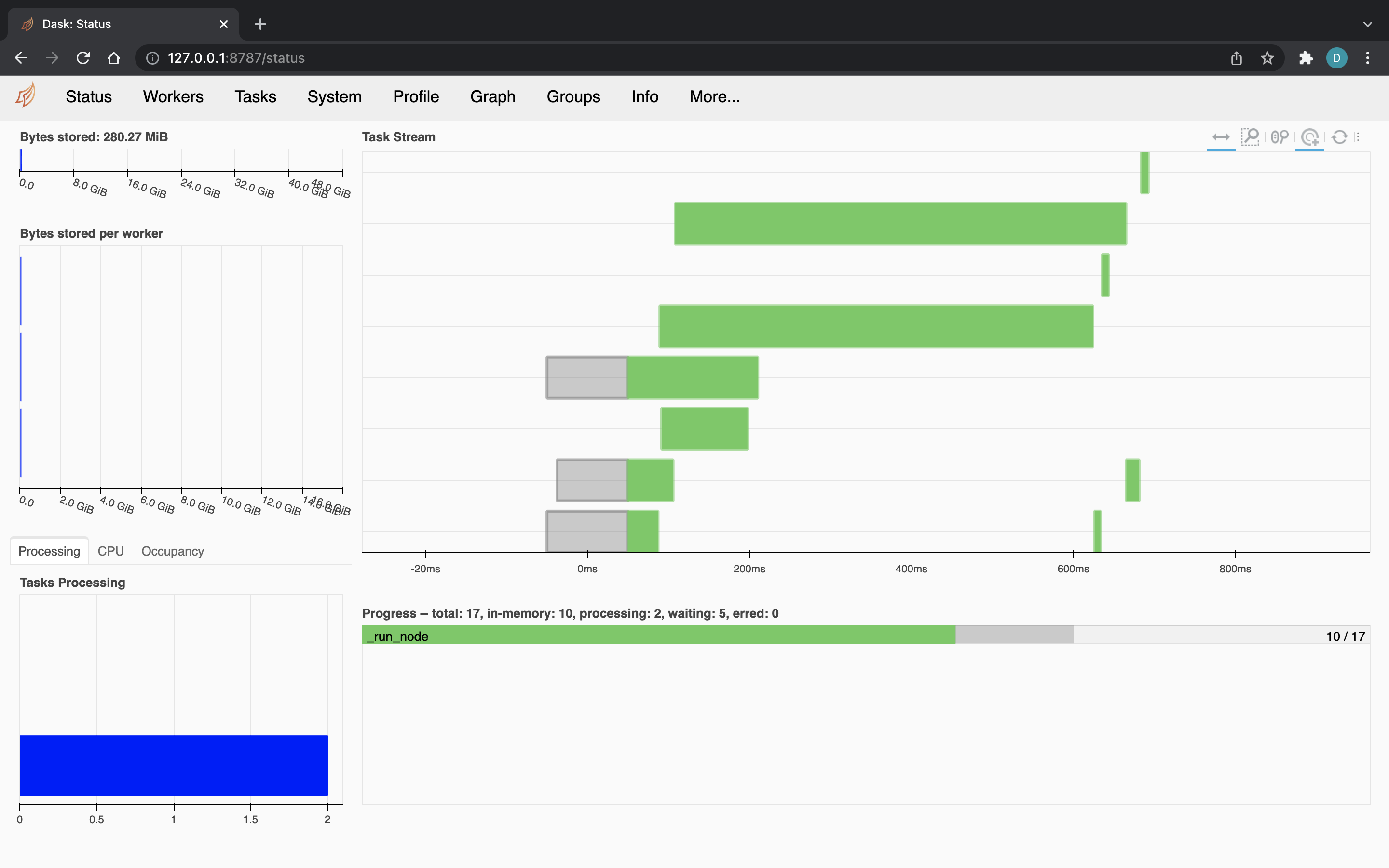

You should start seeing tasks appearing on Dask's diagnostics dashboard:
